Product Brief
SF1 series FPSoC products are the first generation of "SWIFT" series launched by Anlogic Infotech.
SF1 has built-in high-performance RISC-V processor hardcore, DSC hard decoder module, PSRAM and PSRAM hardcore controllers. Positioned in markets of video processing and consumer electronics, it meets the diverse system needs of customers.
Product Table
| Device | DFFs | LUTs | DistributeRAM | eRAM-9K | eRAM-Total | M18*18 | PLL | CPU | DSI | DSC | PSRAM | USER IO | Package Methods | Package Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SF1N60VG81C | 5824 | 5824 | 46K | 26 | 234K | 10 | 2 | 1 | 2 | 1 | 2 | 31 | VFBGA81 | 4.5*4.5 |
| SF1S60VG81C/E | 5824 | 5824 | 46K | 26 | 234K | 10 | 2 | 1 | 2 | 1 | 2 | 31 | VFBGA81 | 4.5*4.5 |
| SF1S60CG121I | 5824 | 5824 | 46K | 26 | 234K | 10 | 2 | 1 | 2 | 1 | 2 | 59 | TFBGA121 | 9*9 |
-
Product Features
-
Application Scenarios
-

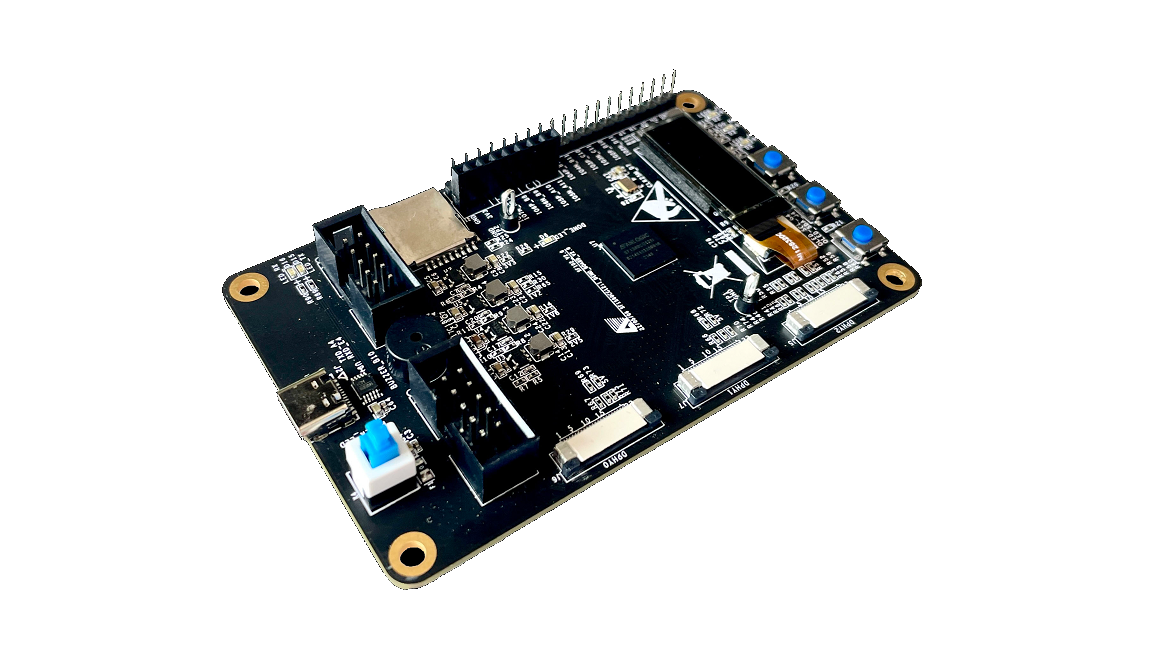

Device Evaluation Board
-
Materials Download
Product Features
-
Equivalent logical resourceEquivalent to 6K LUTs logical resource
-
CPU hardcore
Built-in RISC-V CPU hardcore with three-stage pipeline; maximum main frequency is 160 MHz
-
MIPI hardcore controllers
2 Lane MIPI D-PHY, with maximum line rate of 2.2Gbps
-
PSRAM hardcore
Built-in 64/128Mb PSRAM, clock rate supports up to 200MHz
Application Scenarios
-
Industrial AutomationFlexible and reliable design, accelerating industrial automation development
-
LEDFPGA helps restore real-world color and brightness
-
MIPI & TCON DisplayHigh flexibility fuels emerging display panel innovation
-
Consumer ElectronicsLow power consumption to bring more flexible applications for consumer electronics
