Product Brief

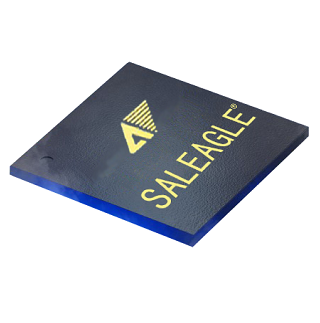

AL3 is one of the “EAGLE” series launched by Anlogic Infotech, featuring low power consumption, low cost and high performance. It is endowed with rich logic resources, DSP, BRAM, high-speed differential IO, and other resources with powerful pin-compatible replacement performance.
It can effectively help users to improve performance and reduce cost in the fields of industrial control, communication access, and display driver.
Product Table
| Device | DFFs | LUTs | DistributeRAM | eRAM-9K | eRAM-32K | eRAM-Total | M18*18 | PLL | DDR/SDR RAM | USER IO | Package Methods | Package Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL3S10NG88 | 8640 | 8640 | 69120 | 48 | 2 | 496K | 3 | 2 | 2M*32 | 60 | QFN88 | 10*10 |
| AL3S10LG144 | 8640 | 8640 | 69120 | 48 | 2 | 496K | 3 | 2 | 2M*32 | 111 | LQFP144 | 16*16 |
| AL3A10BG256 | 8640 | 8640 | 69120 | 48 | 2 | 496K | 3 | 2 | \ | 184 | FBGA256 | 17*17 |
-
Product Features
-
Application Scenarios
-
Materials Download
Product Features
-
Low power consumption65 nm low-power technology, static power consumption as low as 4 mA
-
Flexible logical structure
8640 LUTs, 60-184 user IOs
-
High performance IO
Support hot-swapping and multiple single-ended and differential standards
Application Scenarios
-
Industrial AutomationFlexible and reliable design, accelerating industrial automation development
-
LEDFPGA helps restore real-world color and brightness
-
MIPI & TCON DisplayHigh flexibility fuels emerging display panel innovation
-
Consumer ElectronicsLow power consumption to bring more flexible applications for consumer electronics
