SALEAGLE 4
Industrial control, Communication, Display driver
Product Brief

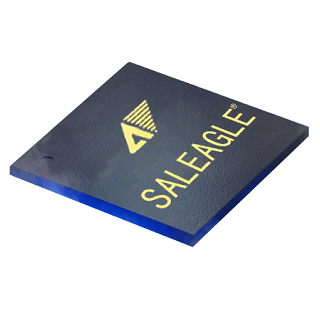

EG4 is one of the "EAGLE" series launched by Anlogic Infotech, featuring low power consumption, low cost and high performance. It is endowed with rich logic resources, DSP, BRAM, high-speed differential IO, and other resources with powerful pin-compatible replacement performance.
It can effectively help users to improve performance and reduce cost in the fields of industrial control, communication access, and display driver.
Product Table
| Device | DFFs | LUTs | DistributeRAM | eRAM-9K | eRAM-32K | eRAM-Total | M18*18 | PLL | DDR/SDRRAM | ADC | USER IO | Package Methods | Package Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EG4S20CG324 | 19600 | 19600 | 154k | 64 | 16 | 1088k | 29 | 4 | 2M*32 | 1 | 215 | LFBGA324 | 15*15 |
| EG4S20BG256B | 19600 | 19600 | 154k | 64 | 16 | 1088k | 29 | 4 | \ | 1 | 193 | LFBGA256 | 17*17 |
| EG4X15BG256 | 14720 | 14720 | 115k | 52 | 8 | 724k | 24 | 4 | \ | 1 | 193 | LFBGA256 | 17*17 |
| EG4D20EG176/B | 19600 | 19600 | 154k | 64 | 16 | 1088k | 29 | 4 | 8M*16 | 1 | 135 | ETQFP176 | 20*20 |
| EG4A15BG256 | 14720 | 14720 | 115k | 52 | 8 | 724k | 24 | 4 | \ | 1 | 196 | LFBGA256 | 17*17 |
| EG4X20LG144 | 19600 | 19600 | 154k | 64 | 16 | 1088k | 29 | 4 | \ | 1 | 107 | LQFP144 | 20*20 |
-
Product Features
-
Application Scenarios
-
Materials Download
Product Features
-
Low-power technology55 nm low-power technology, static power consumption as low as 5 mA
-
Equivalent logical resource
Equivalent to 23.4K LUTs logical resource
-
Large number of users
Up to 196 user IOs
-
Support high-speed interface
Support up to 1 Gbps high-speed LVDS interface
-
Support large device packaging
Allow devices to be packaged up to 324 pins
-
Built-in special devices
Built-in 64M bit SDR SDRAM or 128M bit DDR SDRAM (for some devices)
Application Scenarios
-
Industrial AutomationFlexible and reliable design, accelerating industrial automation development
-
LEDFPGA helps restore real-world color and brightness
-
MIPI & TCON DisplayHigh flexibility fuels emerging display panel innovation
-
Consumer ElectronicsLow power consumption to bring more flexible applications for consumer electronics
